What Is Mineral Wool?
Mineral wool is one of the most widely used insulation materials in modern construction and industrial engineering. It is valued for its thermal insulation, fire resistance, sound absorption, and long service life.
The material is produced by melting natural rock, recycled slag, or glass at extremely high temperatures. The molten material is then spun into fine fibers. These fibers are compressed into different insulation products such as boards, blankets, rolls, batts, and pipe sections.
Simple in appearance. Yet highly effective.
Today, mineral wool insulation is commonly used in residential buildings, commercial projects, industrial plants, HVAC systems, marine engineering, and passive fire protection systems.
Main Types of Mineral Wool
Mineral wool is not a single product category. It includes several different materials, each designed for specific performance requirements and installation environments.
Rock Wool
Rock wool, also called stone wool, is manufactured mainly from basalt rock and volcanic stone materials. It is considered one of the highest-performing insulation materials available today.
Because of its dense fiber structure, rock wool insulation provides excellent:
- Fire resistance
- Thermal insulation
- Acoustic absorption
- Water repellency
- Mechanical strength
Rock wool boards are commonly used in:
- External wall insulation systems
- Curtain walls
- Industrial equipment insulation
- Roofing systems
- Fire barrier systems
- Partition walls
Rock Wool Parameters
λ = 0.033–0.040 W/m·K (EN 12667)
Max temp: 650°C
Density: 80–200 kg/m³
Fire: Euroclass A1 (non-combustible)
Its non-combustible properties make it especially important in high-rise buildings and industrial facilities where fire safety standards are strict.
Glass Wool
Glass wool is produced from recycled glass combined with sand and other raw materials. Compared with rock wool, glass wool is lighter and softer.
It is widely used for:
- Ceiling insulation
- HVAC duct insulation
- Residential wall insulation
- Metal building insulation
- Acoustic ceiling systems
Glass Wool Parameters
λ = 0.032–0.044 W/m·K
Max temp: 450°C
Density: 10–48 kg/m³
Fire: Euroclass A1/A2
Glass wool blankets and rolls are easy to transport and install. This helps reduce labor costs on large construction projects.
The thermal insulation performance is excellent. The lightweight structure also improves flexibility during installation.
Slag Wool
Slag wool is manufactured using blast furnace slag, a byproduct of steel production. It was once widely used in industrial insulation applications.
Today, slag wool is less common than rock wool and glass wool. Still, it remains useful in some industrial thermal insulation systems due to its heat resistance and cost advantages.
Slag wool products are typically found in:
- Industrial plants
- Mechanical rooms
- High-temperature equipment insulation
Slag Wool Parameters
λ = 0.045 W/m·K
Max temp: 350°C
Density: 80–150 kg/m³
Fire: Euroclass A1
| Type | λ value (W/m·K) | Max Temp (°C) | Density (kg/m³) | Fire Class |
|---|---|---|---|---|
| Rock wool | 0.035 | 650 | 120 | A1 |
| Glass wool | 0.040 | 450 | 32 | A1/A2 |
| Slag wool | 0.045 | 350 | 100 | A1 |
Types of Mineral Wool by Product Form
Mineral wool insulation products are available in different forms to match various construction and industrial requirements.
Mineral Wool Boards
Mineral wool boards are rigid insulation panels with high compressive strength and density.
They are commonly used for:
- Exterior wall insulation
- Curtain wall systems
- Roof insulation
- Sandwich panels
- Industrial equipment
High-density rock wool boards are especially effective for fire protection and sound insulation.
Mineral Wool Blankets
Mineral wool blankets are flexible insulation products designed for large-area coverage and irregular surfaces.
Typical applications include:
- Industrial tanks
- Pipe systems
- Boilers
- HVAC ducts
- Metal roofs
Some blankets are reinforced with wire mesh or aluminum foil for additional durability and vapor resistance.

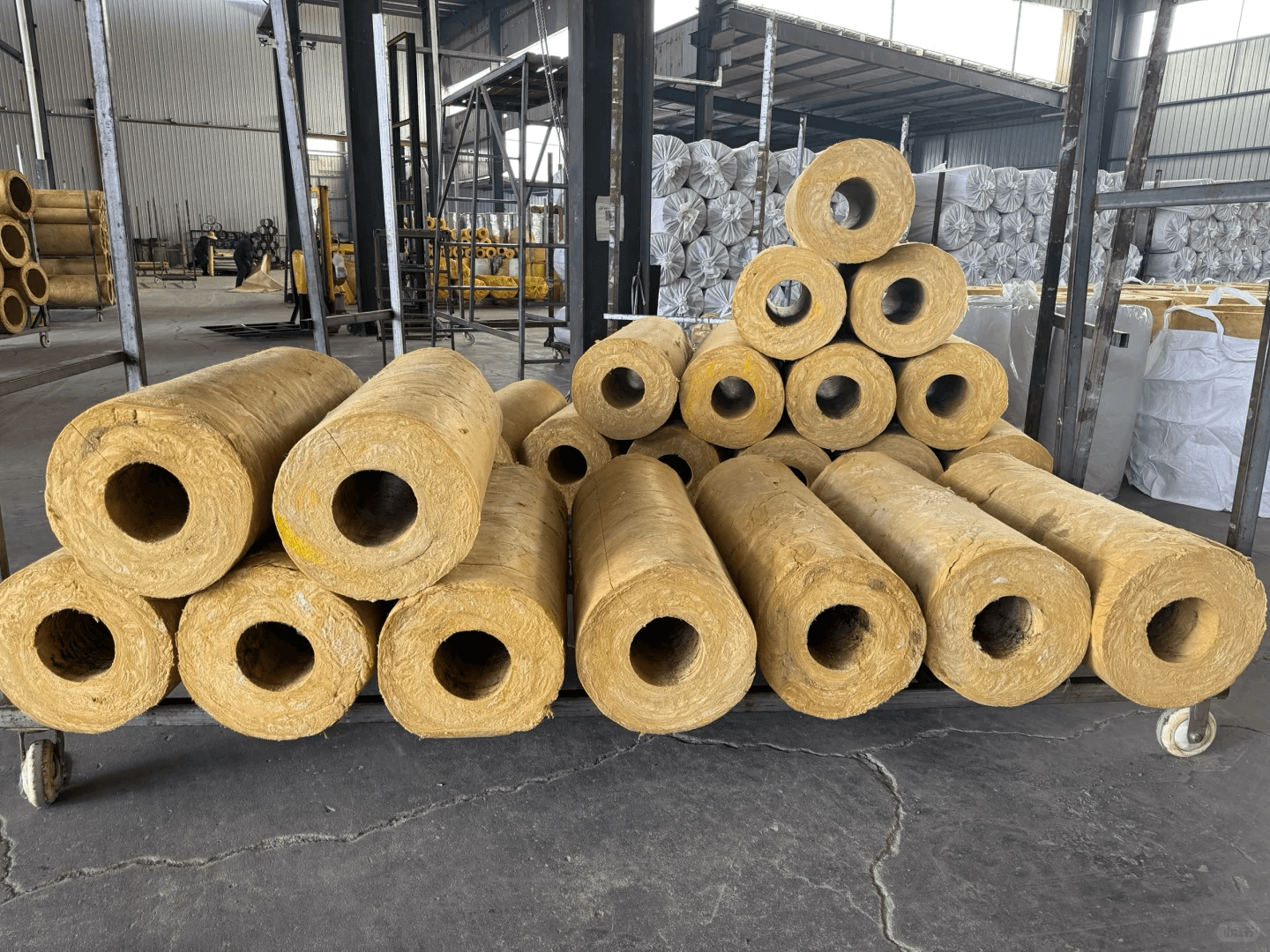

Mineral Wool Pipe Insulation
Mineral wool pipe sections are pre-formed cylindrical insulation products used for thermal pipe protection.
They help:
- Reduce heat loss
- Prevent condensation
- Improve energy efficiency
- Protect personnel from high surface temperatures
These products are widely used in:
- Petrochemical plants
- Power stations
- HVAC systems
- District heating systems
Loose Fill Mineral Wool
Loose fill mineral wool is designed for cavity filling and irregular spaces.
It is often used in:
- Attic insulation
- Wall cavity insulation
- Renovation projects
The material can easily fill gaps and reduce thermal bridging.
Types of Mineral Wool by Application
Different industries require different insulation performance levels. Because of this, mineral wool products are often classified by application.
Building Insulation Mineral Wool
Building insulation mineral wool is primarily used in residential and commercial construction.
Applications include:
- External walls
- Interior partition walls
- Roofing systems
- Suspended ceilings
- Floor insulation
Modern buildings require higher energy efficiency standards. Mineral wool helps reduce energy consumption while improving indoor comfort.
Industrial Mineral Wool
Industrial mineral wool is designed for high-temperature environments and demanding operating conditions.
It is commonly used in:
- Refineries
- Petrochemical plants
- Cement factories
- Steel plants
- Power generation facilities
Industrial insulation systems must withstand vibration, heat, and moisture over long periods. High-density mineral wool products perform well under these conditions.
Acoustic Mineral Wool
Acoustic mineral wool is engineered to absorb sound waves and reduce noise transmission.
It is widely used in:
- Recording studios
- Cinemas
- Hotels
- Office buildings
- Mechanical rooms
The fibrous structure traps airborne sound effectively. This improves acoustic comfort in modern buildings.
Fire Protection Mineral Wool
Fire-rated mineral wool products play a critical role in passive fire protection systems.
They are commonly installed in:
- Fire barriers
- Fire doors
- Curtain wall cavities
- Penetration sealing systems
- Steel structure protection systems
Non-combustibility is one of the biggest advantages of stone wool insulation.
Mineral Wool vs Fiberglass
Many people compare mineral wool insulation with fiberglass insulation. Both materials are effective, but there are important differences.
Fire Resistance
Mineral wool performs better under high temperatures.
Rock wool can withstand temperatures above 1000°C. Fiberglass insulation usually has lower heat resistance.
This makes mineral wool more suitable for:
- Fireproof construction
- Industrial insulation
- High-rise buildings
Sound Insulation
Mineral wool has a denser fiber structure.
As a result, it provides better acoustic performance and sound absorption.
Water Resistance
Rock wool products are often treated with water-repellent additives. This helps maintain thermal performance even in humid environments.
Mechanical Strength
Rigid mineral wool boards offer higher compressive strength than many fiberglass products.
This is important for:
- Facade systems
- Roofing insulation
- Industrial applications
Cost
Fiberglass insulation is often less expensive. However, mineral wool provides higher fire performance and durability in demanding environments.
Fire Resistance of Mineral Wool
Fire safety has become a major concern in modern construction. Especially in high-rise and public buildings.
Mineral wool insulation offers excellent passive fire protection performance.
Non-Combustible Properties
Stone wool is classified as a non-combustible insulation material.
It does not:
- Contribute to flame spread
- Produce large amounts of smoke
- Generate burning droplets
High Melting Temperature
Rock wool maintains structural stability even under extreme heat.
This helps delay structural failure during fires.
Fire Compartmentation
Mineral wool fire barriers help prevent fire and smoke from spreading through concealed spaces.
These systems are widely used in:
- Curtain wall cavities
- Roof voids
- Partition walls
- Service penetrations
Acoustic Performance of Mineral Wool
Noise control matters more than ever. Especially in urban environments.
Mineral wool insulation improves acoustic comfort by reducing sound transmission and reverberation.
Sound Absorption
The open fiber structure absorbs airborne noise efficiently.
This helps reduce:
- Echo
- Machinery noise
- Traffic noise
- HVAC noise
Sound Isolation
Partition walls filled with mineral wool can significantly improve sound insulation performance between rooms.
This is especially important in:
- Offices
- Hotels
- Apartments
- Schools
- Hospitals
Real Project Applications of Mineral Wool
Commercial Office Buildings
High-density rock wool boards are commonly installed in curtain wall systems and partition walls to improve:
- Fire resistance
- Acoustic insulation
- Energy efficiency
Modern office environments require all three.
Industrial Plants
Industrial facilities often use mineral wool blankets and pipe insulation for:
- Heat conservation
- Equipment protection
- Worker safety
These systems help reduce operational energy loss.

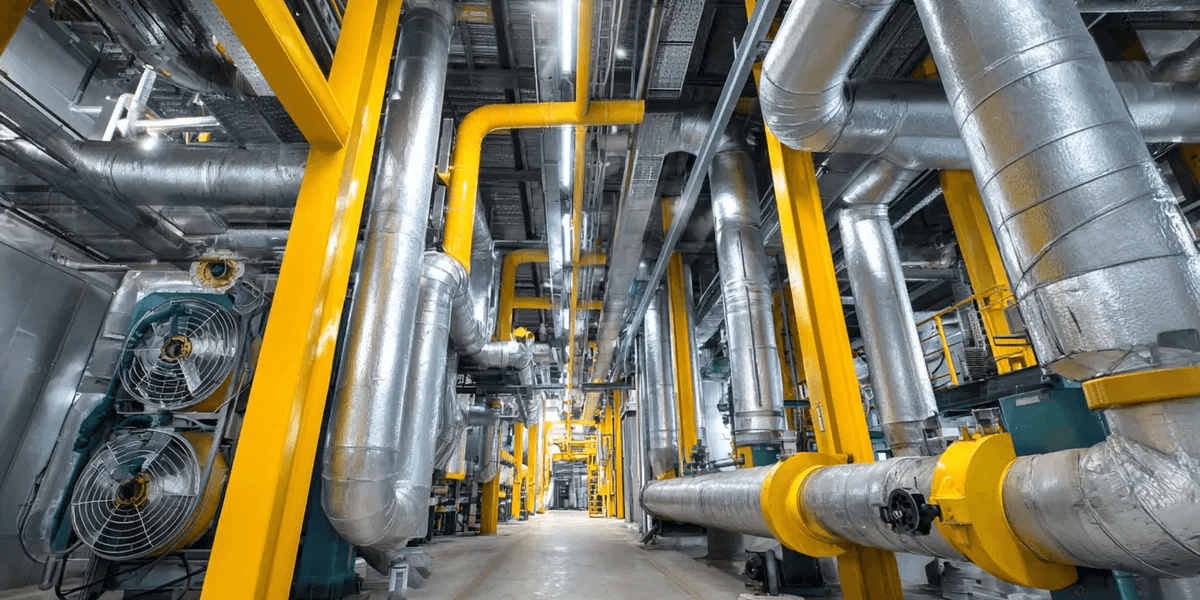

HVAC Systems
Glass wool insulation is widely used in HVAC ducts to control:
- Heat transfer
- Condensation
- Noise
This improves indoor climate performance.
Marine and Offshore Projects
Marine-grade mineral wool products are used in ships and offshore platforms because of their:
- Fire safety
- Moisture resistance
- Thermal stability
How to Choose the Right Mineral Wool
Selecting the correct mineral wool insulation depends on several factors.
Temperature Requirements
High-temperature industrial systems require dense rock wool products with excellent thermal stability.
Fire Rating
Buildings with strict fire codes often require non-combustible stone wool insulation.
Acoustic Requirements
For sound control applications, choose products with higher density and sound absorption ratings.
Moisture Exposure
Humid environments may require water-repellent mineral wool insulation systems.
Installation Conditions
Flexible blankets are ideal for curved surfaces and pipe systems. Rigid boards are better for walls and facades.
Common Mistakes When Choosing Mineral Wool
Many buyers focus only on price. This can create long-term problems.
Choosing the Wrong Density
Low-density insulation may not provide sufficient:
- Fire resistance
- Acoustic performance
- Mechanical strength
Ignoring Moisture Conditions
Moisture exposure can reduce insulation efficiency if the product is not properly specified.
Using Building Products in Industrial Environments
Industrial systems often require higher temperature resistance and stronger structural performance.
Overlooking Fire Regulations
Different countries have different building fire codes. Product certifications should always be checked carefully.
Future Trends in Mineral Wool Insulation
The insulation industry continues to evolve.
Manufacturers are focusing on:
- Lower carbon production
- Recycled raw materials
- Improved thermal performance
- Sustainable construction solutions
Green building standards are also driving demand for high-performance mineral wool insulation systems.
Energy efficiency matters more now. Everywhere.
Conclusion
Mineral wool remains one of the most reliable insulation materials for modern construction and industrial applications.
Its combination of thermal insulation, fire resistance, sound absorption, and durability makes it suitable for a wide range of environments. From residential buildings to petrochemical plants. From HVAC systems to passive fire protection projects.
Different types of mineral wool serve different purposes. Rock wool offers exceptional fire performance. Glass wool provides lightweight thermal insulation. Slag wool supports industrial applications where heat resistance is critical.
Understanding these differences helps engineers, contractors, distributors, and project owners select the right insulation solution for long-term performance and safety.
