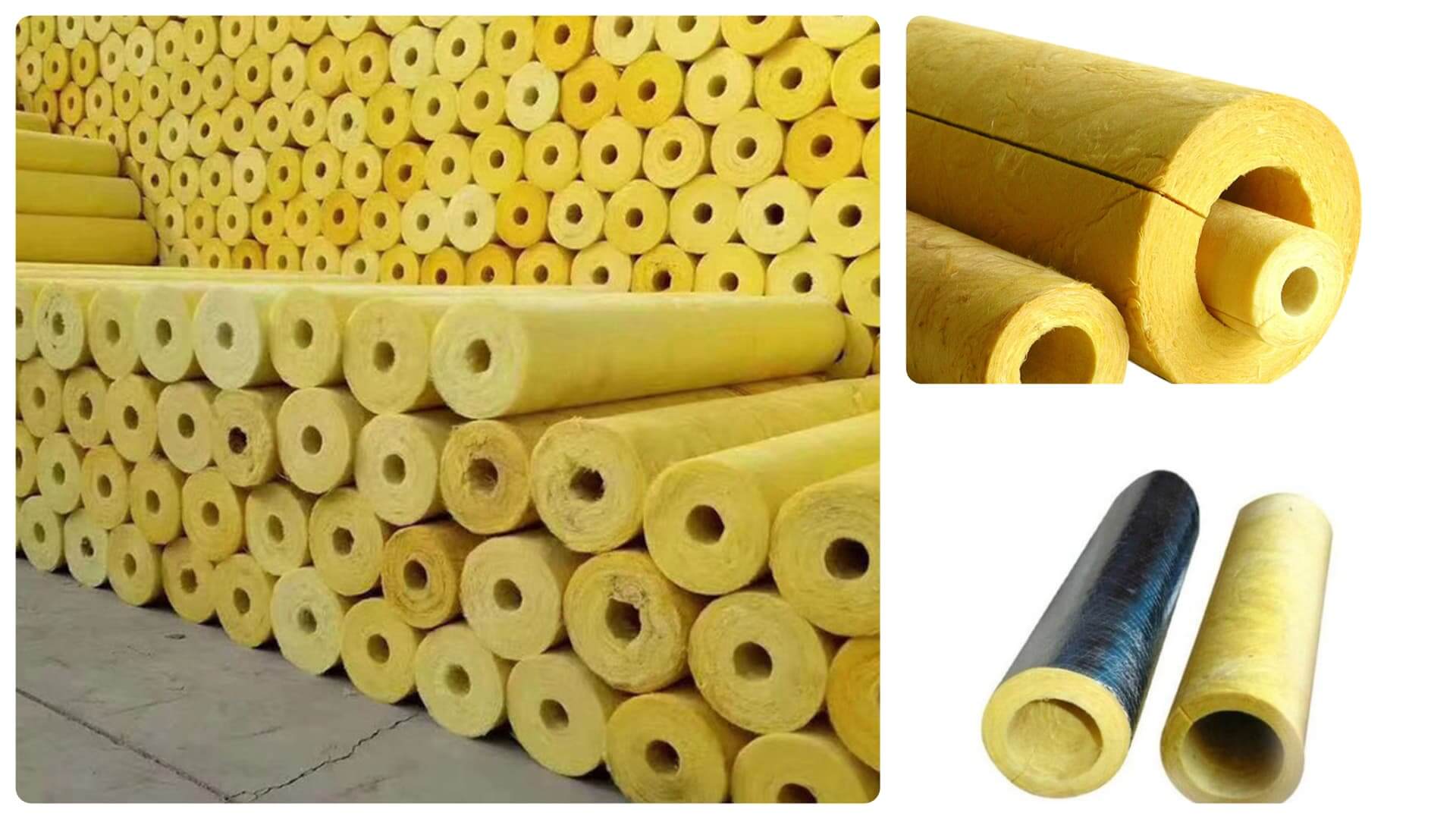

Glass Wool Pipe
Density:48–120 kg/m³ (customizable)
Pipe Inner Diameter:20mm – 630mm
Thickness:25mm, 30mm, 40mm, 50mm, 60mm, 80mm, 100mm
Length:1000mm, 1200mm, 1500mm
Product Overview
1. What is glass wool pipe insulation?
Glass wool pipe insulation is a pre-formed tubular insulation product manufactured from high-quality glass fibers bonded with an eco-friendly thermosetting resin. The material is precision-molded into pipe sections that fit snugly around standard pipeline diameters. It is designed to provide thermal insulation, condensation prevention, and acoustic absorption for a wide range of piping systems in commercial, industrial, and residential applications.
2. What are the key features of glass wool pipe insulation?
Perfect Pipeline Fit
Precision molded tubular structure ensures tight seams without gaps, maximizing insulation efficiency and eliminating thermal bridging.
Anti-Condensation Performance
The material effectively isolates temperature differences between the pipe surface and the surrounding environment, preventing dew condensation and extending pipeline service life.
High-Efficiency Thermal Insulation
With low thermal conductivity (≤0.034 W/(m·K) at 25°C), glass wool pipe significantly reduces heat loss in hot water systems and cold loss in chilled water lines, cutting long-term energy operating costs by up to 30%.
Class A Non-Combustible
Made from inorganic glass fibers, this material is non-combustible (Class A fire rating) and complies with strict international fire safety standards including ASTM E84 and EN 13501-1. It does not contribute to fire spread and withstands temperatures up to 350°C.
High Hydrophobicity
The glass wool pipe features low moisture absorption rate, resisting mold growth and corrosion even in humid environments. This hydrophobic property ensures stable thermal performance throughout the product’s lifespan.
Lightweight & Easy Installation
Light weight and high toughness make the glass wool pipe ready to use without complex processing. The pre-slit design allows quick fitting around existing pipelines, significantly improving construction efficiency and reducing labor costs.
Product Specifications
|
Item
|
Parameter Details
|
|
Density
|
48kg/m³, 64kg/m³, 80kg/m³, 96kg/m³
|
|
Inner Diameter
|
DN20, DN25, DN32, DN40, DN50, DN65, DN80, DN100, DN125, DN150
|
|
Thickness
|
20mm, 25mm, 30mm, 40mm, 50mm
|
|
Length
|
914mm, 1000mm
|
|
Thermal Conductivity
|
≤0.036 W/(m·K) (25℃)
|
|
Hydrophobic Rate
|
≥98%
|
|
Working Temperature
|
-40℃ ~ 250℃
|
|
Fire Rating
|
Class A non-combustible
|
What surface options are available for glass wool pipe?
We offer tailored surface treatments to match different pipeline environments and project requirements:
| Surface Type | Description | Best Application |
|---|---|---|
| Plain Unfaced | Basic bare pipe surface, cost-effective solution | Conventional pipeline insulation where no additional protection is needed |
| Aluminum Foil Facing | Enhances waterproofing, vapor barrier and anti-corrosion performance | Anti-condensation pipelines, HVAC systems, high-humidity environments |
| Fiberglass Mesh | Provides additional mechanical strength and impact resistance | Industrial pipelines requiring extra durability |
| Kraft Paper | Economical facing option for dry indoor applications | General building services and HVAC projects |

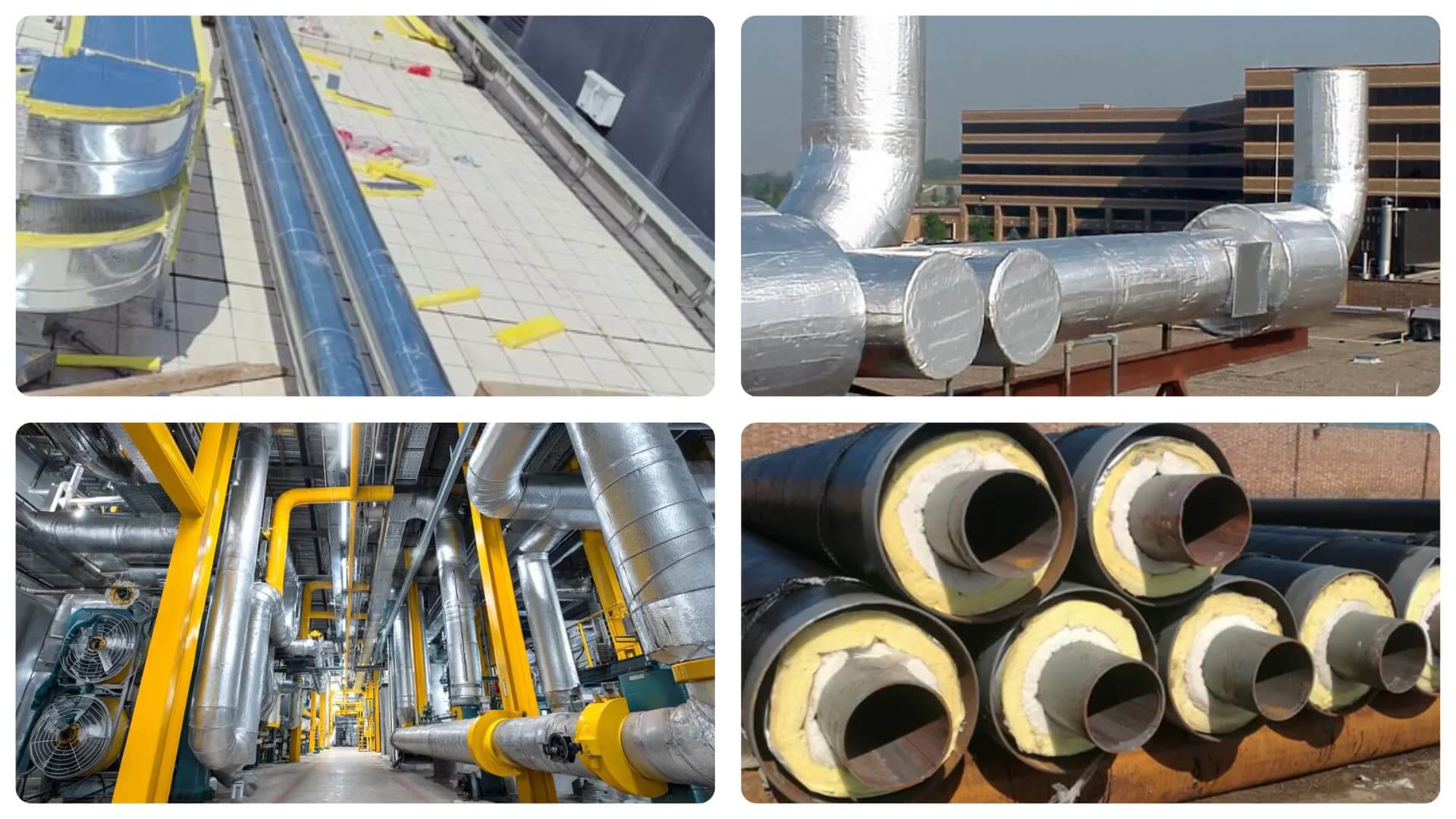

4. What are the main applications of glass wool pipe?
The versatile glass wool pipe is widely used in various pipeline insulation projects:
Central Air Conditioning Systems
Ideal for both chilled water and hot water pipelines in HVAC systems, providing thermal efficiency and condensation control.
Domestic Hot Water and Heating Systems
Prevents heat loss from hot water pipes and eliminates condensation on cold water lines, improving system efficiency.
HVAC and Plumbing Noise Reduction
The dense fiber structure effectively absorbs vibration and noise from flowing liquids and gases, contributing to quieter building environments.
Industrial Pipeline Insulation
Suitable for small and medium-sized pipelines carrying liquids or gases in manufacturing facilities, chemical plants, and power generation stations.
Marine and Offshore Applications
Specifically engineered to withstand vibration, humidity, and temperature fluctuations in shipboard and offshore platform pipeline systems.
5. What technical specifications does glass wool pipe offer?
| Parameter | Specification |
|---|---|
| Material | High-quality glass wool (fiberglass) with eco-friendly binder |
| Density Range | 48 – 120 kg/m³ (customizable) |
| Pipe Inner Diameter | 20mm – 630mm |
| Wall Thickness | 25mm, 30mm, 40mm, 50mm, 60mm, 80mm, 100mm (customizable) |
| Length | 1000mm, 1200mm, 1500mm |
| Operating Temperature | -50°C to 350°C |
| Thermal Conductivity | ≤0.034 W/(m·K) at 25°C |
| Fire Rating | Class A (non-combustible) – ASTM E84, EN 13501-1 |
| Water Repellency | ≥98% hydrophobic rate |
| Sound Absorption Coefficient (NRC) | ≥0.80 |
| Corrosion Resistance | Non-corrosive, pH neutral |
| Certifications | CE, ISO 9001, ASTM C547, EN 14303 |
6. What are the advantages of choosing Everinsulation glass wool pipe?
Full Range of Specifications
Our product line covers all conventional pipeline sizes on the market, ensuring you find the exact fit for your project without custom fabrication delays.
High-Density Molding
Advanced manufacturing processes produce consistent density and fiber distribution, guaranteeing stable thermal performance and mechanical strength.
Strict Quality Inspection
Each batch undergoes rigorous testing to ensure finished product qualification rates meet international standards, giving you peace of mind.
Customizable Options
For special projects requiring non-standard diameters, thicknesses, or surface treatments, we offer flexible customization services.
Complete Service Support
From initial quotation through production, quality control, packaging, and delivery, we provide full-link service with responsive after-sales support.
7. How does glass wool pipe compare to other pipe insulation materials?
| Material | Glass Wool Pipe | Rubber Foam | Polyethylene | Calcium Silicate |
|---|---|---|---|---|
| Temperature Range | -50°C to 350°C | -40°C to 105°C | -70°C to 80°C | Up to 650°C |
| Fire Rating | Class A | Class B/C | Class B/C | Class A |
| Acoustic Performance | Excellent | Good | Fair | Poor |
| Water Repellency | ≥98% | ≥95% | ≥90% | Low |
| Cost | Moderate | High | Low | High |
| Best Application | HVAC, industrial, marine | HVAC, chilled water | Low-temp pipes | High-temp industrial |
Glass wool pipe offers the best balance of fire safety, thermal performance, acoustic absorption, and cost-effectiveness for most HVAC and industrial applications.
8.How to get a quote for glass wool pipe?
Please provide the following information for a free, no-obligation quote within 24 hours:
-
Pipeline inner diameter (mm or inches)
-
Required insulation thickness (mm)
-
Surface treatment preference (unfaced, aluminum foil, etc.)
-
Estimated order quantity or project length
-
Shipping destination
Contact us directly through our website or email, and our technical sales team will respond with detailed pricing, lead times, and product documentation.
