Glass Wool Board
Density:24kg/m³, 32kg/m³, 48kg/m³, 64kg/m³, 80kg/m³, 96kg/m³
Thickness:25mm, 50mm, 75mm, 100mm
Standard Size:1200mm×600mm, 1000mm×600mm (custom size acceptable)
Thermal Conductivity:≤0.038 W/(m·K) (25℃)
Fire Rating:Class A non-combustible
Glass Wool Board – Premium Rigid Thermal Insulation & Sound Absorption Board
This professional glass wool board is designed for high-efficiency thermal insulation, noise reduction and fire protection in construction and industrial fields, delivering reliable performance and long service life.
Product Overview
Our glass wool board is a high-performance rigid insulation material made from high-purity glass fiber and eco-friendly binder through high-temperature hot pressing. This professional thermal insulation glass wool board features low thermal conductivity, superior sound absorption and Class A non-combustible performance, widely used for building exterior wall insulation, steel structure insulation, curtain wall filling and commercial industrial noise reduction projects, providing long-term energy-saving and fire safety protection for construction projects.
Key Features
-
Superb Thermal Insulation: Low thermal conductivity, effectively blocks heat transfer and reduces energy consumption of buildings.
-
Excellent Sound Absorption: Porous fiber structure significantly weakens noise transmission, ideal for soundproof scenarios.
-
Class A Non-combustible: Inorganic glass fiber material, zero flammability, meets strict fire protection standards.
-
Stable Dimensional Performance: Resists deformation, cracking and aging, suitable for long-term use in diverse environments.
-
Low Hygroscopicity: Good hydrophobic property, prevents mold growth and maintains performance stability.
-
Easy Construction: Can be cut freely with simple tools, high construction efficiency and low labor cost.
Product Specifications
|
Item
|
Parameter Details
|
|
Density
|
24kg/m³, 32kg/m³, 48kg/m³, 64kg/m³, 80kg/m³, 96kg/m³
|
|
Thickness
|
25mm, 50mm, 75mm, 100mm
|
|
Standard Size
|
1200mm×600mm, 1000mm×600mm (custom size acceptable)
|
|
Thermal Conductivity
|
≤0.038 W/(m·K) (25℃)
|
|
Hydrophobic Rate
|
≥98%
|
|
Working Temperature
|
-40℃ ~ 250℃
|
|
Fire Rating
|
Class A non-combustible
|
Product parameter of the glass wool board
| Item | Unit | Index | Standard |
| Bulk density | kg/m3 | 24-96 | GB/T 5480.3-1985 |
| Average fiber dia. | µm | 5.5 | GB/T 5480.4-1985 |
| Water content | % | ≤1 | GB/T 3007-1982 |
| Grade of combustibility | Non-combustible Grade A | GB 8624-1997 | |
| Reshrinking temp | ℃ | ≥250 | GB/T 11835-1998 |
| Thermal conductibility | w/m.k | 0.031-0.042 | GB/T 10294-1988 |
| Hydrophobicity | % | ≥98.2 | GB/T 10299-1988 |
| Moisture rate | % | ≤5 | GB/T 16401-1986 |
| Sound absorption coefficient | 1.03 product reverberation method 24kg/m32000HZ | GBJ 47-83 | |
| Slag inclusion content | % | ≤0.3 |
Surface Options
We provide two mainstream surface treatments for glass wool board to adapt to different construction environments and insulation needs:
-
Plain Unfaced: Basic bare glass wool board, cost-effective, suitable for conventional enclosed insulation
-
Aluminum Foil Facing: Enhances vapor barrier and waterproof performance, ideal for humid environments
-
Fiberglass Cloth Facing: Improves surface toughness, prolongs service life (customizable)

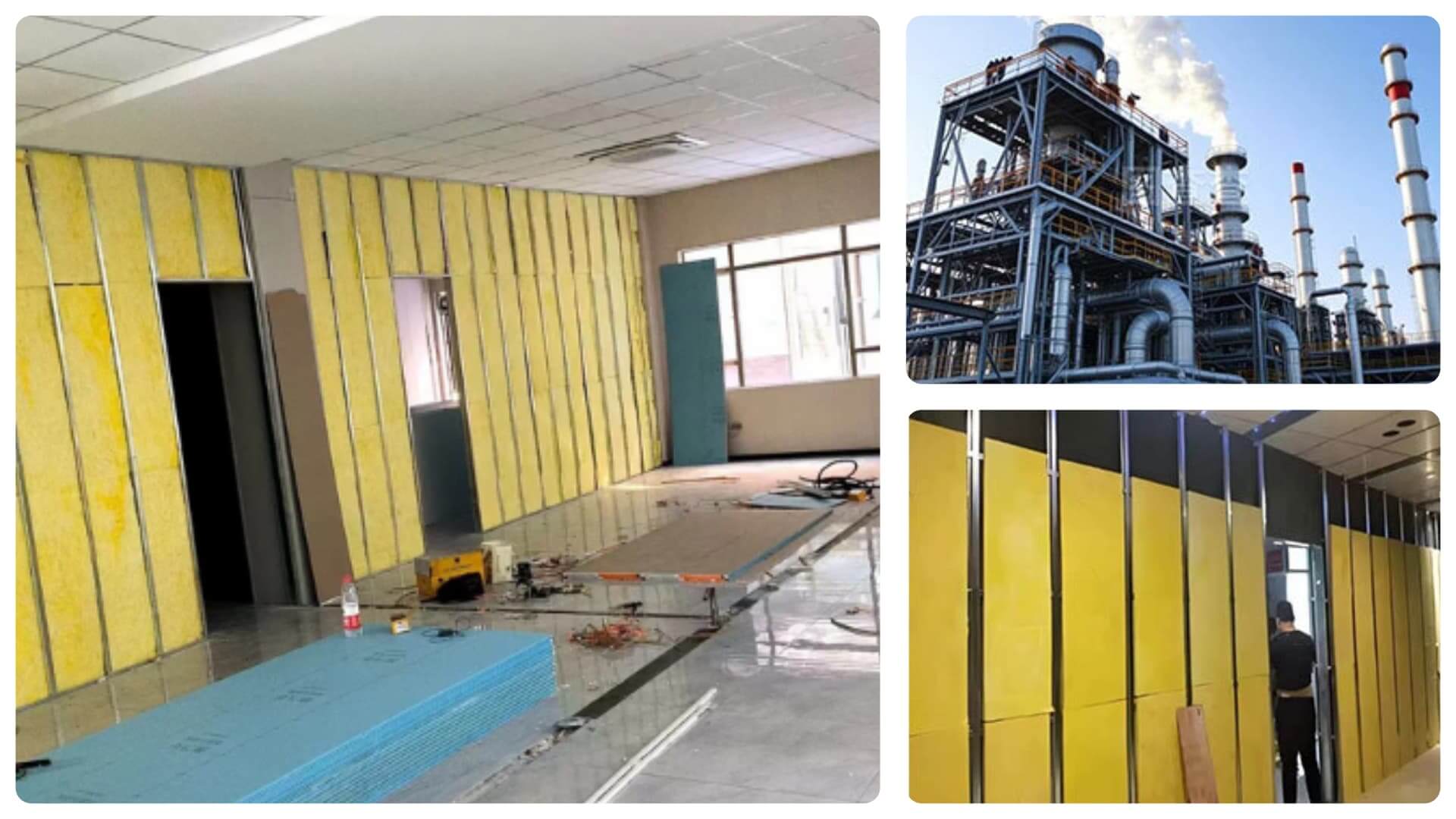

Main Applications
The versatile glass wool board is widely applied in multiple insulation and soundproof scenarios, covering most construction and industrial projects:
-
Building exterior wall and interior partition insulation & sound absorption
-
Steel structure roof and wall thermal insulation system
-
Curtain wall filling insulation and fireproof isolation
-
Equipment room, HVAC room noise reduction and heat insulation
-
Workshop, warehouse and public building insulation projects
Our Advantages
Choose our glass wool board, you will get professional, stable and cost-effective insulation solutions with core strengths:
-
Strict quality control system, certified by CE, ISO9001 and international standards
-
Customizable specifications, densities and surface treatments to meet diverse project needs
-
Stable supply capacity, fast delivery and professional after-sales technical support
-
High cost-performance ratio, competitive factory direct price without middlemen
-
Eco-friendly formula, low odor, safe for construction and indoor use
Get a Free Quote Now!
Tell us your project requirements, target specifications, quantity and delivery location, and our sales team will provide you with a free, accurate and competitive quote within 24 hours. Contact us now to start your efficient insulation solution!
